Genie Nano
Genie Nano，一款GigE的CMOS面掃描相機，主打低成本高性能。支援超多的高解析選擇，從VGA到25M像素。
增加了專有的相機技術，以實現突破性的速度。在多種工作環境溫度下得到極好的影像以及擁有無與倫比的多項功能，所有這些功能都以最優質的價格提供給客戶。
Genie Nano 提供黑白、彩色及NIR模組。可用鏡頭端口包含C、CS及F mount。
Teledyne DALSA獨有的Turbo Drive 技術使Genie Nano能以更快的取像速度(150%或更高)執行提供完整影像並保證影像品質。
- 業界最新的CMOS Sensor
- 採用堅固耐用的SDR連接設計適應工業環境
- 相容GenIcam GenCP
- 在部分掃描模式下可實現更高的取像速度
- 全域快門(Global shutter )
- 支援多區域影像拍攝 (Multi-ROI)
- 標準的 PC 乙太網路端口及硬體
- 支援長達100米的線材(CAT-5e或CAT-6)
| 解析度 | Sensor |
Frame Rate |
Pixel Size |
Dynamic Range |
Max. Image Circle |
Data Format | 型號 | |
| M640/M640-NIR | 640 x 480 |
On-Semi Python300 |
862 fps | 4.8 μm | 62.1 dB | 1/4" Optical Format | 8 or 10-Bit Mono |
G3-GM10-M0640 G3-GM12-M0640 (NIR) |
| C640 | 640 x 480 |
On-Semi Python300 |
862 fps | 4.8 μm | 62.1 dB | 1/4" Optical Format |
8 or 10-Bit |
G3-GC10-C0640 G3-GC10-C0640IF (with IR cut-off filter) |
| M700 | 728 x 544 | Sony IMX287 | 311 fps | 6.9 μm | 73.6 dB | 1/3” Optical Format | 8 or 12-Bit Mono | G3-GM10-M0700 |
| C700 | 728 x 544 | Sony IMX287 | 311 fps | 6.9 μm | 73.6 dB | 1/3" Optical Format |
8 or 12-Bit Bayer/RGB/YUV* |
G3-GC10-C0700 |
| M800/M800-NIR | 800 x 600 |
On-Semi Python500 |
566 fps | 4.8 μm | 62.1 dB |
1/3.3” Optical Format |
8 or 10-Bit Mono |
G3-GM10-M0800 G3-GM12-M0800 (NIR) |
| C800 | 800 x 600 |
On-Semi Python500 |
566 fps | 4.8 μm | 62.1 dB |
1/3.3” Optical Format |
or 10-Bit Bayer/RGB/YUV* |
G3-GC10-C0800 G3-GC10-C0800IF (with IR cut-off filter) |
| M1240 | 1280 x 1024 |
1280 x 1024 On-Semi Python1300 P3 |
83 fps | 4.8 μm | 62.1 dB | 1/2" Optical Format |
8 or 10-Bit Mono |
G3-GM11-M1240 |
| C1240 | 1280 x 1024 |
1280 x 1024 On-Semi Python1300 P3 |
83 fps | 4.8 μm | 62.1 dB | 1/2" Optical Format |
8 or 10-Bit Bayer/RGB/YUV* |
G3-GC11-C1240 G3-GC11-C1240IF |
| M1280/M1280-NIR | 1280 x 1024 |
On-Semi Python1300 |
213 fps | 4.8 μm | 62.1 dB | 1/2" Optical Format | 8 or 10-Bit Mono |
G3-GM10-M1280 G3-GM12-M1280 (NIR) |
| C1280 | 1280 x 1024 |
On-Semi Python1300 |
213 fps | 4.8 μm | 62.1 dB | 1/2" Optical Format |
8 or 10-Bit Bayer/RGB/YUV* |
G3-GC10-C1280 G3-GC10-C1280IF (with IR cut-off filter) |
| M1450 | 1280 x 1024 |
On-Semi Python1300 |
213 fps | 4.8 μm | 62.1 dB | 1/2" Optical Format |
8 or 10-Bit Mono |
G3-GM10-M1280 G3-GM12-M1280 (NIR) |
| C1280 | 1280 x 1024 |
On-Semi Python1300 |
213 fps | 4.8 μm | 62.1 dB | 1/2" Optical Format |
8 or 10-Bit Bayer/RGB/YUV* |
G3-GC10-C1280 G3-GC10-C1280IF (with IR cut-off filter) |
| M1450 | 1456 x 1080 | Sony IMX273 | 160 fps | 3.45 μm | 76.4 dB | 1/3" Optical Format | 8 or 12-Bit Mono | G3-GM10-M1450 |
| C1450 | 1456 x 1080 | Sony IMX273 | 160 fps | 3.45 μm | 76.4 dB | 1/3" Optical Format |
8 or 12-Bit Bayer/RGB/YUV* |
G3-GC10-C1450 G3-GC10-C1450IF (with IR cut-off filter) |
| M1920 | 1920 x 1200 | Sony IMX249 | 39 fps | 5.86 μm | 75.5 dB | 1/1.2" Optical Format | 8 or 12-Bit Mono | G3-GM11-M1920 |
| C1920 | 1920 x 1200 | Sony IMX249 | 39 fps | 5.86 μm | 75.5 dB | 1/1.2" Optical Format |
8 or 12-Bit Bayer/RGB/YUV* |
G3-GC11-C1920 G3-GC11-C1920IF (with IR cut-off filter) |
| M1940 | 1920 x 1200 | Sony IMX174 | 84 fps | 5.86 μm | 68.3 dB | 1/1.2" Optical Format | 8 or 10-Bit Mono | G3-GM10-M1940 |
| C1940 | 1920 x 1200 | Sony IMX174 | 84 fps | 5.86 μm | 68.3 dB | 1/1.2" Optical Format |
8 or 10-Bit Bayer/RGB/YUV* |
G3-GC10-C1940 G3-GC10-C1940IF (with IR cut-off filter) |
| M1930/M1930-NIR | 1920 x 1200 |
On-Semi Python2000 |
116 fps | 4.8 μm | 62.1 dB | 2/3" Optical Format | 8 or 10-Bit Mono |
G3-GM10-M1930 G3-GM12-M1930 (NIR) |
| C1930 | 1920 x 1200 |
On-Semi Python2000 |
116 fps | 4.8 μm | 62.1 dB | 2/3" Optical Format |
8 or 10-Bit Bayer/RGB/YUV* |
G3-GC10-C1930 G3-GC10-C1930IF (with IR cut-off filter) |
| M2020 | 2048 x 1536 | Sony IMX265 | 55 fps | 3.45 μm | 76.4 dB | 1/1.8" Optical | 8 or 12-Bit Mono | G3-GM11-M2020 |
| C2020 | 2048 x 1536 | Sony IMX265 | 55 fps | 3.45 μm | 76.4 dB | 1/1.8" Optical Format |
8or 12-Bit Bayer/RGB/YUV* |
G3-GC11-C2020 G3-GC11-C2020IF (with IR cut-off filter) |
| M2050 | 2048 x 1536 | Sony IMX252 | 140 fps | 3.45 μm | 56.4 dB | 1/1.8" Optical Format | 8-Bit Mono | G3-GM10-M2050 |
| C2050 | 2048 x 1536 | Sony IMX252 | 140 fps | 3.45 μm | 56.4 dB | 1/1.8" Optical Format |
8-Bit Bayer/RGB/YUV* |
G3-GC10-C2050 G3-GC10-C2050IF (with IR cut-off filter) |
| 2448 x 2048 | Sony IMX264 | 35 fps | 3.45 μm | 76.4 dB | 2/3" Optical Format |
8 or 12-Bit Mono |
G3-GM11-M2420 | |
| C2420 | 2448 x 2048 | Sony IMX264 | 35 fps | 3.45 μm | 76.4 dB | 2/3" Optical Format |
8 or 12-Bit Bayer/RGB/YUV* |
G3-GC11-C2420 G3-GC11-C2420IF (with IR cut-off filter) |
| M2450 | 2448 x 2048 | Sony IMX250 | 90 fps | 3.45 μm | 56.4 dB | 2/3" Optical Format | 8-Bit Mono | G3-GM10-M2450 |
| C2450 | 2448 x 2048 | Sony IMX250 | 90 fps | 3.45 μm | 56.4 dB | 2/3" Optical Format |
8-Bit Bayer/RGB/YUV* |
G3-GC10-C2450 G3-GC10-C2450IF (with IR cut-off filter) |
| M2590/M2590-NIR | 2448 x 2048 |
On-Semi Python5000 |
51 fps | 4.8 μm | 62.1 dB | 1" Optical Format |
8 or 10-Bit Mono |
G3-GM10-M2590 G3-GM12-M2590 (NIR) |
| C2590 | 2448 x 2048 |
On-Semi Python5000 |
51 fps | 4.8 μm | 62.1 dB | 1" Optical Format |
8 or 10-Bit Bayer/RGB/YUV* |
G3-GC10-C2590 G3-GC10-C2590IF (with IR cut-off filter) |
| M4060 | 4112 x 2176 | Sony IMX255 | 56 fps | 3.45 μm | 56.4 dB | 1" Optical Format | 8-Bit Mono | G3-GM10-M4060 |
| C4060 | 4112 x 2176 | Sony IMX255 | 56 fps | 3.45 μm | 56.4 dB | 1" Optical Format |
8-Bit Bayer/RGB/YUV* |
G3-GC10-C4060 G3-GC10-C4060IF (with IR cut-off filter) |
| M4040 | 4112 x 3012 | Sony IMX253 | 40 fps | 3.45 μm | 56.4 dB | 1.1" Optical Format | 8-Bit Mono | G3-GM10-M4040 |
| M4040 | 4112 x 3012 | Sony IMX253 | 40 fps | 3.45 μm | 56.4 dB | 1.1" Optical Format |
8-Bit Bayer/RGB/YUV* |
G3-GC10-C4040 G3-GC10-C4040IF (with IR cut-off filter) |
| M4030 | 4112 x 2176 | Sony IMX267 | 30 fps | 3.45 μm | 76.4 dB | 1” Optical Format | 8 or 12-Bit Mono | G3-GM-11-M4030 |
| C4030 | 4112 x 2176 | Sony IMX267 | 30 fps | 3.45 μm | 76.4 dB | 1” Optical Format |
8 or 12-Bit Bayer/RGB/YUV* |
G3-GC-11-C4030 G3-GC-11-C4030IF (with IR cut-off filter) |
| M4020 | 4112 x 3012 | Sony IMX304 | 20 fps | 3.45 μm | 76.4 dB | 1.1” Optical Format |
8 or 12-Bit Mono |
G3-GM-11-M4020 |
| C4020 | 4112 x 3012 | Sony IMX304 | 20 fps | 3.45 μm | 76.4 dB | 1.1” Optical Format |
8 or 12-Bit Bayer/RGB/YUV* |
G3-GC-11-C4020 G3-GC-11-C4020IF (with IR cut-off filter) |
| C4900 | 4912 x 3684 |
On-Semi AR1820HS |
13 fps | 1.25 μm | 65.8 dB | 1/2.3” Optical Format |
User selectable Bayer/RGB/YUV* |
G3-GC10-C4900 (for C-mount option) |
| XL M4090 | 4096 x 4096 |
On-Semi Python 16K |
31 fps | 4.5 μm | 55.2 dB | APS-H Optical Format |
8 or 10-Bit Mono |
G3-GM30-M4095 |
| XL C4090 | 4096 x 4096 |
On-Semi Python 16K |
31 fps | 4.5 μm | 55.2 dB | APS-H Optical Format |
8 or 10-Bit Bayer |
G3-GC30-C4095 |
| XL M5100 | 5120 x 5120 |
On-Semi Python 25K |
20 fps | 4.5 μm | 55.2 dB | APS-H Optical Format |
8 or 10-Bit Mono |
G3-GM30-M5105 |
| XL C5100 | 5120 x 5120 |
On-Semi Python 25K |
20 fps | 4.5 μm | 55.2 dB | APS-H Optical Format |
8 or 10-Bit Bayer |
G3-GC30-C5105 |
| M2450 POLARIZED |
2448 x 2048 | Sony IMX20MZR | 34.4 fps | 3.45 μm | 76.4 dB | 2/3" Optical Format |
8 or 12-Bit Mono |
G3-GM14-M2450 |

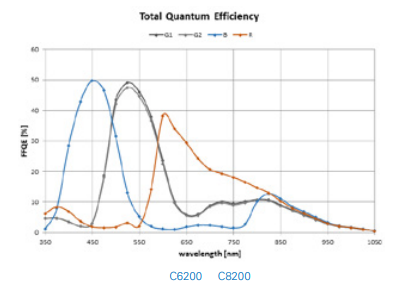

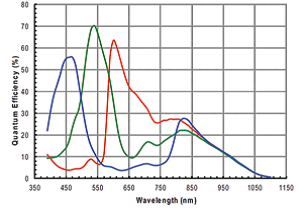

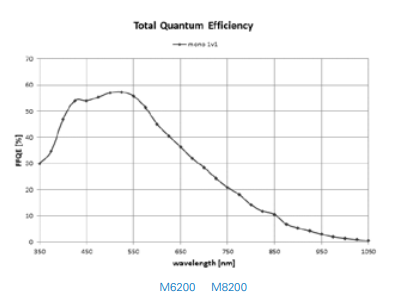

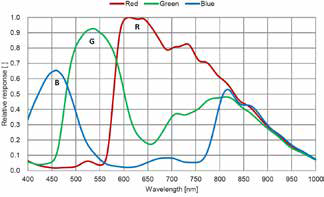

光譜反應

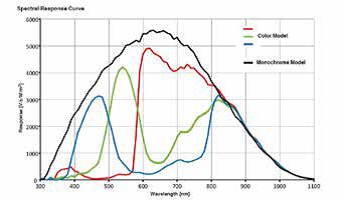

C640 C800 C1280 C1930 C2590 C4090 C5100

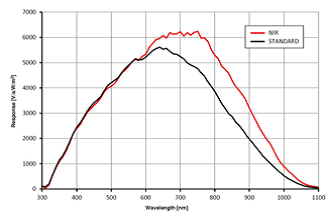

M640/NIR M800/NIR M1280/NIR M2590/NIR M1930/NIR M4090 M5100
C4900

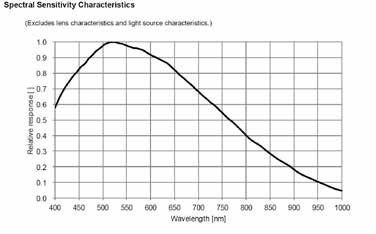

M4060 M4040 M4030 M4020 M2020 M2050 M2420 M2450

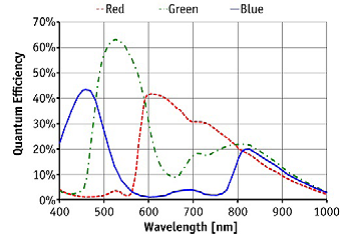

C1920 C1940
C4060 C4040 C4030 C4020 C2020 C2050 C2420 C2450

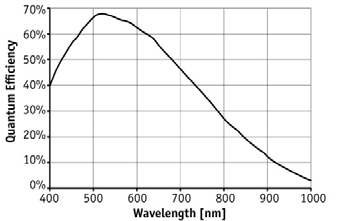

M1920 M1940
-電子製造檢查
-工業用計量
-智能交通系統
